Binocular Iris Scanner Module TCI301MS
binocular iris scanner module tci301ms
iris scanner module

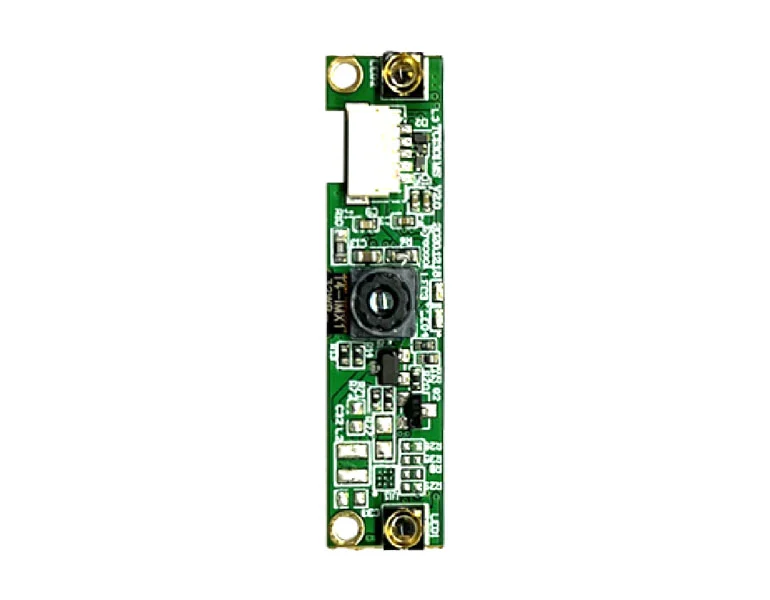

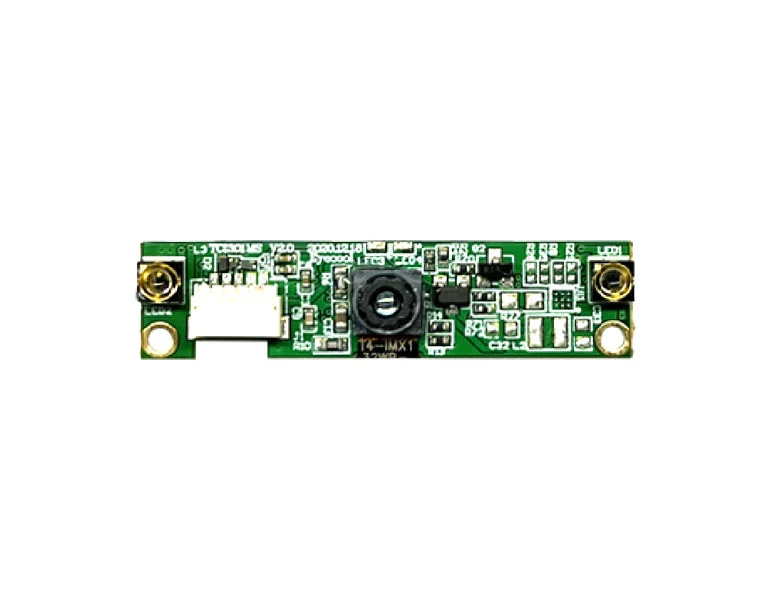

Binocular Iris Scanner Module TCI301MS

TCI 301 MS is a Binocular Iris Capture Module with the function of iris image collection and processing. With compact size and simple structure, it is ergonomic, easy to use and suitable for all kinds of people. Compatible with USB and providing standard customized development interfaces, it can meet the customized requirements of different users, easy to be integrated and is applicable for places with high identity security requirements.

Inquire
Inquire
Share
Share

Documents Supports of Iris Scanner Module TCI301MS

Feature of Binocular Iris Scanner Module TCI301MS

Easy to Integrate

Easy to Integrate

The iris scanner module has compact size and is easy to integrate.

Software Development Kits

Software Development Kits

The iris scanner module provides standard SDK for customized development calling.

High Resolution Sensor

High Resolution Sensor

The iris scanner module makes iris image quality better.

Infrared LED

Infrared LED

The iris scanner module is equipped with Infrared LED on board to ensure the validity and accuracy of iris recognition.


Precise and Convenient

Precise and Convenient

The iris scanner module supports both iris acquisition and recognition

Iris enrollment: capture and enroll iris features of users.

Iris comparison: conduct iris comparison  on the embedded device with Eyecool original iris comparison algorithm to realize user's identity verification in more secure way.


International Certification

International Certification

The product has obtained ISO/IEC 62471 certification.

Parameter of Binocular Iris Scanner Module TCI301MS


Basic Parameters

CMOS

1/7 sensor

Resolution

1920(H) x 1080(V) (16:9 mode)

Pixel Size

1.12um x 1.12um

Image Transport Rate

1920*600/30fps

FOV

H:29.1°, V:9.4°, D:30.4°

Aperture

F2.2

Distortion

TV Distortion<1.0

CRA

<29.8°

Lens Temperature Range

-20°/+80°

Lens Structure

2P+IR

Depth of Field

28~33CM

Image Format

MJPG/YUY

Operating Wave

810nm

Dynamic Range

60dB

Dimensions

40.17x10.17x6.6MM

Os Supported

Windows2003/2008/Xp/7/8/8.1/10

Android 4.1 or above with UVC

Linux 2.6.32 or above with UVC

Other Parameters

Power Supply

5V±10, Ripple is required to be below 100MV

Operating Current

340MA±5

Operating Temperature

-10˚C~+55˚C (Humidity: 10 RH~95 RH)

Storage Temperature

-20˚C~+70˚C (Humidity: 10 RH ~95 RH)

Application Scenario of Binocular Iris Scanner Module TCI301MS


Iris Scanner Module
Mobile Criminal Investigation

Embedded in mobile devices to help verfy identity of criminal or suspects.

Iris Recognition Reader
Online Examine

Embedded in pads or laptops to verify candidates identity.

Iris Biometric Reader
Election

Iris biometric information capture, deduplication and verification of legal voters in election scenario.
