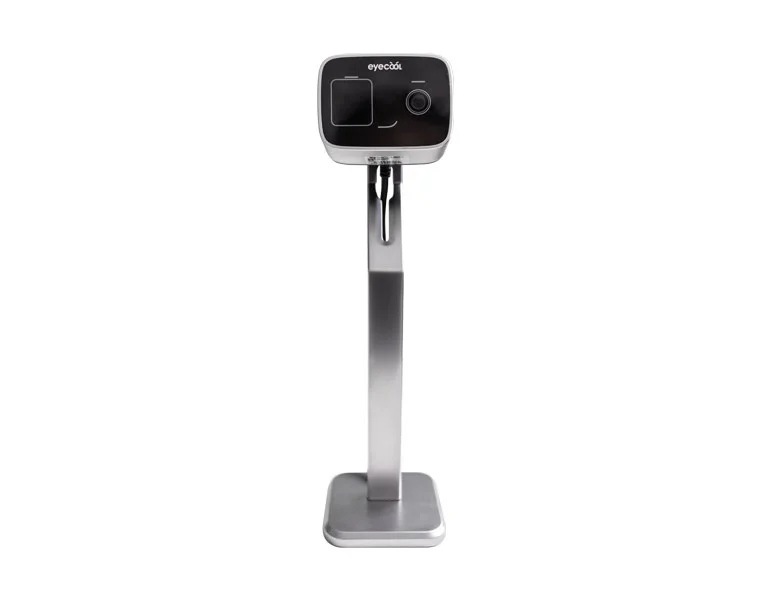

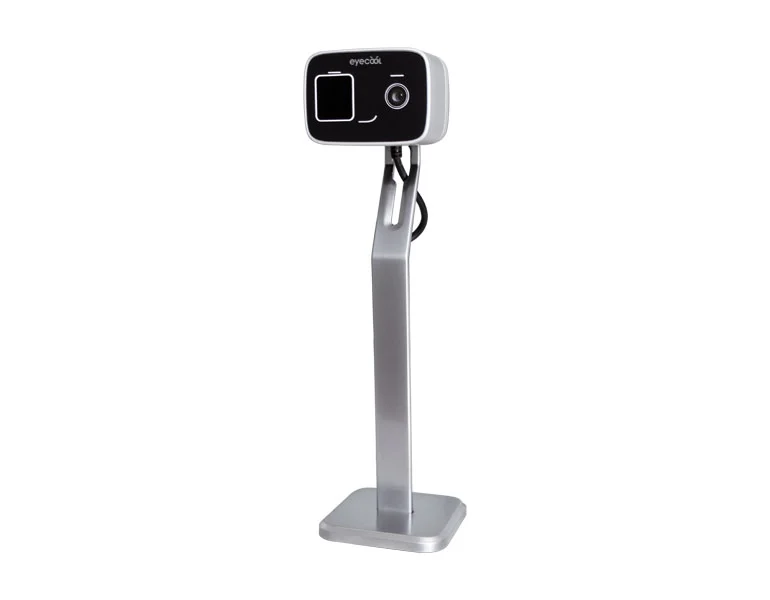

| ECI351 Binocular Iris Recognition Device |
 |
| Eyecool Technology binocular iris recognition device (ECI351) is a biometric vertical product that collects, registers, compares and verifies the iris feature information inside human eyes, and it’s suitable for desktop placement. The camera adopts mirror design, built-in infrared fill-in light and small size. Unique triple iris acquisition distance positioning technology of the device makes the iris acquisition process easy and convenient. It is applicable to all kinds of people and is widely used in iris identity verification scenes in the fields of finance, public security, education, judicial organs, social security, etc. |
| PRODUCT ADVANTAGES |
 Precise and Convenient |
 Original Appearance |
|
| Supports both iris acquisition and recognition. It can realize the acquisition, registration of users' iris information, and establish a feature library based on the information; compare the iris information collected on site with the iris information stored in database to realize user identity verification. |

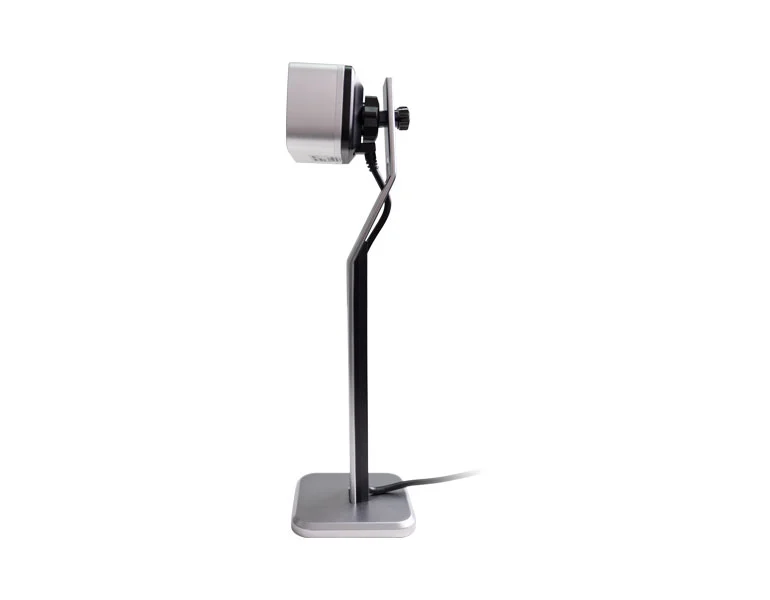

Vertical product is suitable to be placed on the desktop. Size of the device is small and easy to use. The camera adopts mirror design and built-in infrared fill-in light, ensuring the accuracy and effectiveness of iris image acquisition and recognition under various light conditions. |
|
 Triple Positioning
|
 Software Development Kits |
|
| Triple iris acquisition distance positioning technology and indepen- dent iris image detection algorithm lead to accurate capture of iris image. |
Provides demonstration tools and development kits to support secon- dary development. |
|
 Drive Free Installation |
 Complete Certifications |
|
| USB universal device, drive free installation. | The device has obtained various international certificates such as CE, RoHS and FCC. |
| PARAMETERS |
|
Basic Parameters |
Camera Type |
Single mode near infrared lens |
|
Pixel |
2million pixels |
|
|
Resolution |
1920*1080 |
|
|
Maximum Frame Rate |
1920*[email protected] |
|
|
Output Format |
MJPG/YUV |
|
|
Interface |
USB2. 0 |
|
|
Performance Parameters |
Drive Type |
Drive free |
|
Identification Distance |
40~70cm |
|
|
System Support |
Windows 7, Windows 8, Windows10, Linux system |
|
|
Exposure Control |
Automatic |
|
|
White Balance |
Automatic |
|
|
Using Environment |
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-30~60℃ |
|
|
Working Humidity |
5%~95%RH |
|
|
Power Supply |
USB power supply |
|
|
Power Waste |
2.2W |
|
|
Other Parameters |
Product weight |
950g (including packaging), net weight 700g |
|
USB cable length |
3 Meters |
| APPLICATION SCENARIO |
 |
 |
 |
 |
|
Finance Bank teller login verification, password free login. |
Prison Iris acquisition and verification of prison personnel. |
Airport Border exit and entry management. |
Education Candidates - students registration and verification. |
