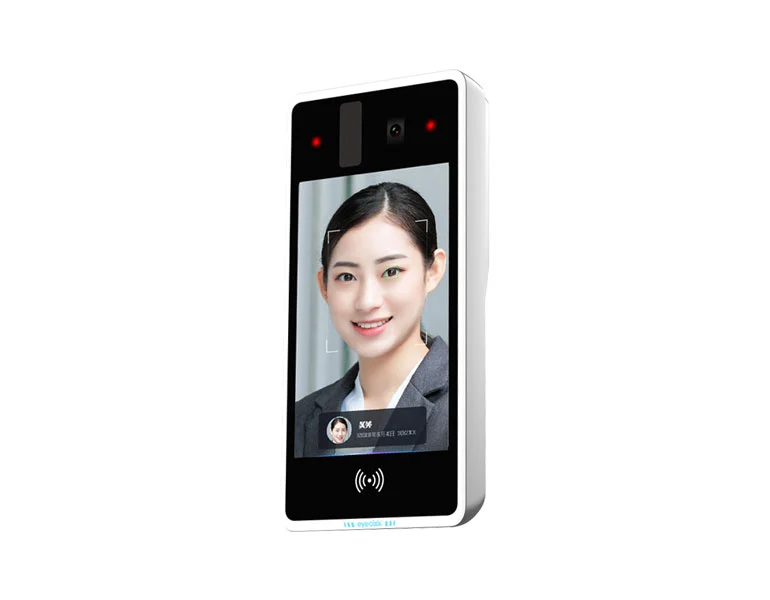

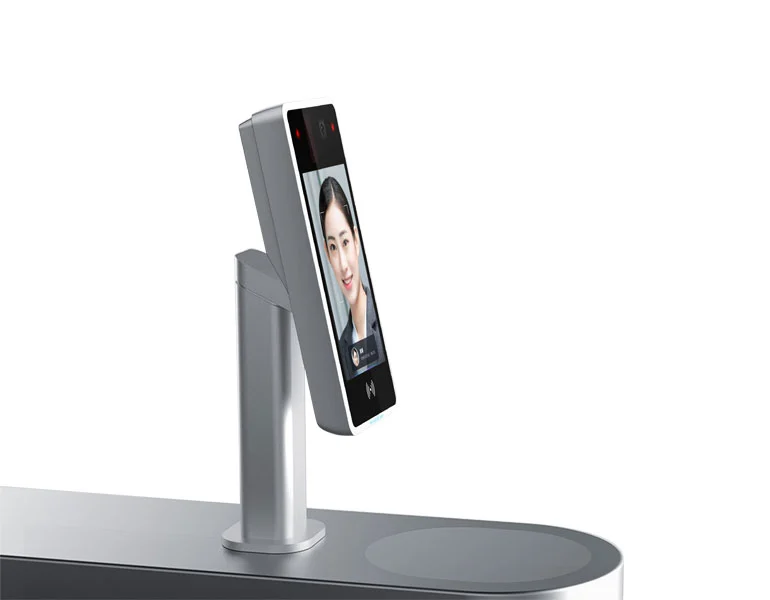

Eyecool multi-modal face & iris recognition access control terminal (ECX333), an intelligent access control product, realizes identity authentication, access control and temperature measurement by integrating temperature measurement and biometric identification technology that covers face, iris and other in-depth facial features. With the multimodal integrated biometric algorithm developed by Eyecool, the device possesses both the convenience in facial recognition and preciseness in iris recognition. It has been widely applied in places that have high requirements on security level such as computer rooms, vaults, offices, etc.
360 Soft adaptive fill-in light, good recognition effects under various light conditions.
Precise recognition even with masks, hats, contact lenses, goggles, etc. Users can pass smoothly without affecting safety protection.
The device can automatically rotate and aim at the position of human eyes according to users' heights, it adapts to the height of 1.3 - 2.0m, dynamically locates and captures iris and face.
The built-in algorithm can accurately judge the distance between personnel and the device. Users can adjust the distance to device according to tri-color indicator lights, text and voice prompts, which makes interaction more friendly.
The device has obtained various international certifications such as CE, RoHS and FCC.
The device integrates the card recognition synchronously, hidden card swiping design under the screen, which is simple and fashionable.
The device is embedded with high-safety and high-precision iris, face and multimodal recognition algorithm. Users' biometric information can be collected insensibly within the range of 40-70cm through the device to complete personnel feature registration of iris and face images and comparison.
Equipped with temperature measurement module, the device has infrared temperature measurement function. The infrared camera can follow the human body up and down, accurately capture the temperature data at the eyebrow center of the human body. The temperature measurement accuracy is ± 0.3 ℃, which is safe and convenient.
Realize device management, device monitoring, permission management, personnel management, background comparison, statistical query, data synchronization, attendance management functions through cloud.
Multi terminals sharing with one-time registration, easy to realize the smooth connection of the whole scenes.
Color camera: 2M and above resolution
Near infrared camera: 2M resolution
Adaptive infrared fill-in light
8 inches, full viewing angle not less than 170 °
Iris recognition / face recognition /multimodal face fusion recognition
Local comparison / cloud comparison
Alibaba cloud/private cloud
USB2. 0 HOST OTG
RS232/RS485/Wiegand 26/34/switching value
Interface common configurable
TTL IO (inner door opening switch, door magnet)
Red, green, white tri color ring indicator light
(green -success, red - failure, white - breathing fill light)
Automatic activation by sensing movement of human body
Human body Sensor
40-70cm (iris, face, multimodal recognition)
Height Adaptation Range
Self rotation, adaptive height 120~190cm (installed at 170cm)
Personnel Number Supported
1 second (local)
2 seconds (cloud, in a smooth network environment)
Used in video call and message leaving
Built in 2W horn, reserved external doorbell and horn interface
Human Body Temperature Measurement
Height adaptive tracking rotation temperature measurement, no need cooperation within 120cm-190cm
Angle sensor, DC motor
-35°C ~ 60°C
Applicable to scenarios that parts of people's faces are covered, such as hospital operating room, coal mine, etc.

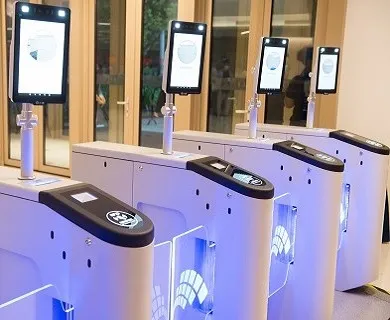

It supports cloud platform and is suitable for access control in general scenes.
It's applicable to access control in places that have high requirements on security level such as bank vaults, data center, etc.
